Audi A4 Infotainment Multi Media Interface

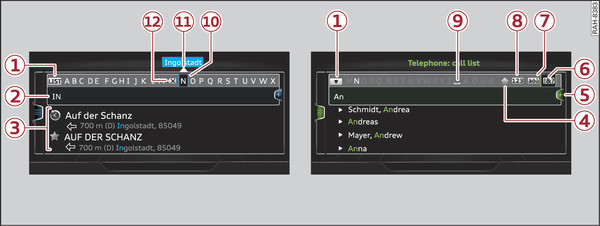

Fig. 191 Illustration: Speller for letters/numbers
Fig. 191 Illustration: Speller for letters/numbers
You can use the speller for letters/numbers to enter letters, numbers and characters in the MMI. This option is available while the entry field -2- is active Fig. 191.
  • To call up/close the speller for letters/numbers: Push the rotary pushbutton upwards/downwards while the entry field is active. Or: Select the right control button > Open speller/Close speller.
  • To enter a letter/number: With the selection line activated, turn the rotary pushbutton -10- Fig. 191 to select the desired letter/number. Press the rotary pushbutton to confirm the letter/number. Your entry will appear in the entry field -2-. When you have finished entering letters/numbers, select and confirm the LIST button -1- Fig. 191. Or: Push the rotary pushbutton downwards.
  • To enter diacritics (e.g. â, ç, ñ, ö)*: With the selection line activated, turn the rotary pushbutton to select a letter -10- Fig. 191. To open the corresponding set of diacritics, press and hold the rotary pushbutton. Turn the rotary pushbutton to select a diacritic while in the character selection line -10- Fig. 191. Press the rotary pushbutton to apply the diacritic. To close the set of diacritics without selecting a character, press and hold the rotary pushbutton again. Or: Select and confirm ǎōű -7- Fig. 191. Select and confirm a diacritic.
  • To delete a character: Select and confirm -12- Fig. 191. To delete all characters in the entry field, select and press and hold the rotary pushbutton until all characters have been deleted.
  • To enter a special character: Select and confirm !&? -6- Fig. 191 or 123 -8-. Use the speller for numbers to select and confirm the special character desired (such as a hyphen or full stop).
  • Input help: In some cases (such as in the navigation system*), the system will suggest a word* to complete your entry while you are still making it -11- Fig. 191. You can confirm the word by pushing the rotary pushbutton upwards.
  • Results list: In some cases (such as in the directory), the system will switch to the results list -3- Fig. 191 automatically. Select and confirm a suggestion from the list.

Requirement: The entry field -2- Fig. 191 must be active.

  • To switch between the speller and the MMI touch pad*: The handwriting recognition feature is automatically activated for the MMI touch pad*, which means you can simply start writing.
Overview of the symbols in the speller
The symbols of the speller for letters/numbers are explained in the following table:

Symbol / marking
Description
-1-
LIST or
To switch to the results list.
-2-
Entry field
The current entry is displayed.
Menu language Arabic: A vertical line on the left/right side of the cursor indicates where the next character will be inserted.
-3-
Results list
A list of suggestions for the letters already entered is displayed.
-4-
To switch from lower case to upper case letters and vice versa.
Menu language Arabic: To show additional Arabic characters.
-5-
To open further speller options, e.g. Close speller, Clear entry field or Switch to Cyrillic characters
-6-
!&?
Punctuation and special characters
-7-
ǎōű
To display diacritics (e.g. â, ç, ñ, ö) or the Cyrillic alphabet.
Menu language Arabic: To switch between Arabic and Latin characters.
-8-
123/ABC
To switch the speller from letters to numbers and vice versa
-9-
To enter a space in the entry field.
-10-
Character selection
The character selected will be highlighted.
-11-
The suggested word* can be accepted by pushing the rotary pushbutton upwards.
-12-
To delete the character to the left of the cursor.
Menu language Arabic: Note the direction of writing.
Note
Diacritics are not available for every letter.
