►Audi A4 ►Setting off ►Seats and storage ◀Luggage compartment
Applies to: vehicles with fastening rings

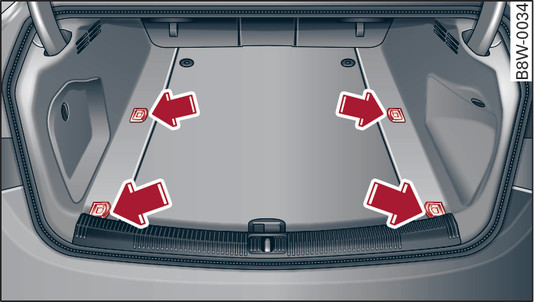

Fig. 83 Luggage compartment: Fixed fastening rings
Fig. 83 Luggage compartment: Fixed fastening rings

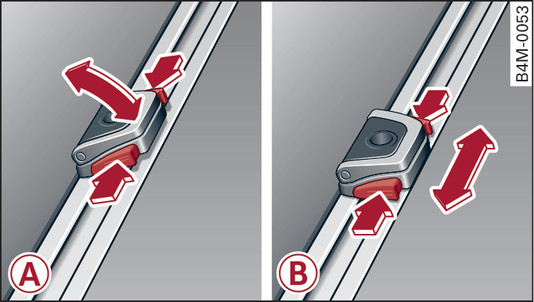

Fig. 84 Luggage compartment: Variable* fastening rings
Fig. 84 Luggage compartment: Variable* fastening rings
Secure items of luggage to the fastening rings with non-elastic straps.
Fixed fastening rings
Insert the hooks of the stretch net* into the fastening rings.
Installing/removing variable fastening rings*
To install the fastening rings, press the buttons on both sides and place the fastening rings on the rail -A- Fig. 84►.
To remove the fastening rings, press the buttons on both sides and take the fastening rings off the rail.
To secure the stretch net*, fold up the clips on the fastening rings.
Insert the hooks of the stretch net* into the fastening rings.
Moving variable fastening rings*
To move the fastening rings, press the buttons on both sides and slide the fastening rings to the desired position -B- Fig. 84►.
