►Audi A4 ►Setting off ►Seats and storage ◀Luggage compartment
Applies to: vehicles with load guard
The load guard prevents objects in the luggage compartment from being thrown forward into the passenger compartment.

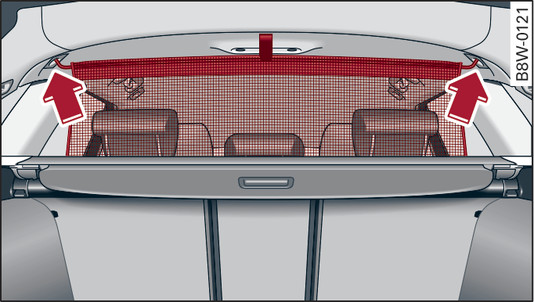

Fig. 79 Behind the rear backrest: Hooking the load guard into place
Fig. 79 Behind the rear backrest: Hooking the load guard into place

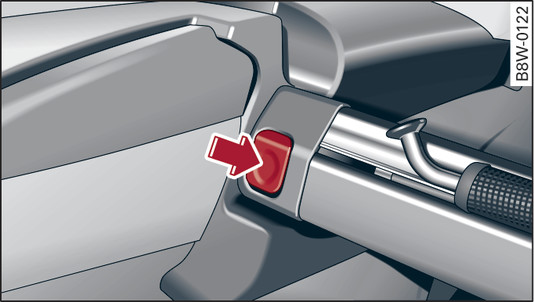

Fig. 80 Behind the rear backrest: Removing the load guard
Fig. 80 Behind the rear backrest: Removing the load guard
Hooking into place
Pull the load guard upwards. Engage the ends of the rod in the retainers above the backrest -arrows- Fig. 79►.
Removing
Fold down the backrests link►.
Press the button on both sides and lift out the load guard Fig. 80►.
Installing
Fold down the backrests link►.
Slide the load guard into the mountings on the left and right.
Push the load guard downwards at an angle until it engages on both sides and the red markings on the buttons are no longer visible.
CAUTION
To prevent any damage, let the load guard retract slowly.
