Applies to: vehicles with bulbs

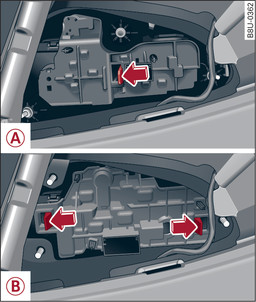

- Fig. 360 Rear light: -A- 3-door/Sportback, -B- Saloon/Cabriolet: Release points

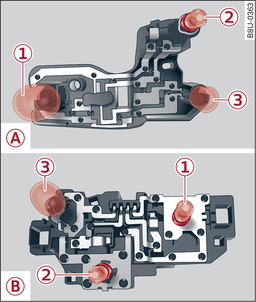

- Fig. 361 Rear light: -A- 3-door/Sportback, -B- Saloon/Cabriolet: Positions of bulbs
(Applies to: 3-door/Sportback: ) Press the retaining tab in the direction of the arrow -A- Fig. 360►.
(Applies to: Saloon/Cabriolet: ) Press the retaining tabs in the direction of the arrows -B- Fig. 360►.
Detach the bulb carrier -A- or -B- Fig. 361►.
Renew the defective bulb (pull to remove from plug-in holder or turn to remove from bayonet holder).
Attach the bulb carrier.
Re-install all the parts in the reverse sequence.
Check whether the new bulb is working.
Position Fig. 361► | Bulb function |
-1- | Rear fog light |
-2- | Reversing light |
-3- | Tail light |
