Audi A3 Self-help Fuses and bulbs Changing bulbs for rear...
Applies to: vehicles with bulbs

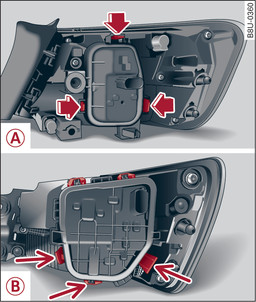

Fig. 356 Rear light: -A- 3-door/Sportback, -B- Saloon/Cabriolet: Release points
Fig. 356 Rear light: -A- 3-door/Sportback, -B- Saloon/Cabriolet: Release points

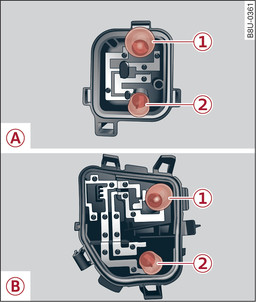

Fig. 357 Bulb carrier: -A- 3-door/Sportback, -B- Saloon/Cabriolet: Positions of bulbs
Fig. 357 Bulb carrier: -A- 3-door/Sportback, -B- Saloon/Cabriolet: Positions of bulbs
(Applies to: 3-door/Sportback: ) Press the retaining tabs in the direction of the arrows -A- Fig. 356.
(Applies to: Saloon/Cabriolet: ) Unfasten the clips securing the bulb carrier -B- Fig. 356. Start with the three clips at the bottom -arrows-.
Detach the bulb carrier -A- or -B- Fig. 357.
Renew the defective bulb (pull to remove from plug-in holder).
Attach the bulb carrier.
Re-install all the parts in the reverse sequence.
Check whether the new bulb is working.
Position of bulbs
Position Fig. 357
Bulb function
-1-
Brake light / tail light
-2-
Turn signal
