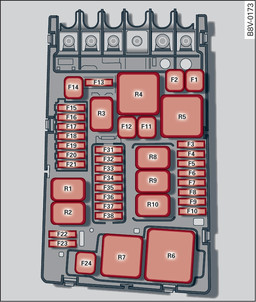

- Fig. 345 Engine compartment: Fuse layout
No. | Electrical equipment |
F1 | Electronic stabilisation control (ESC) |
F2 | Electronic stabilisation control (ESC) |
F3 | Engine control unit |
F4 | Engine components, engine cooling, supplementary heater relay coils (1+4+7), secondary air pump relay |
F5 | Engine components, fuel tank system (diesel), CNG shut-off valve |
F6 | Brake light switch |
F7 | Engine components, coolant pumps, tank system (petrol) |
F8 | Lambda probe |
F9 | Engine components, exhaust flap, control unit for automatic glow period (relay 6) |
F10 | Fuel control unit, fuel pump |
F11 | Air auxiliary heater heating rod 2, secondary air pump |
F12 | Air auxiliary heater heating rod 3, vacuum pump |
F13 | Automatic gearbox |
F14 | Engine components, ignition coil |
F15 | Horn |
F16 | Ignition coil (relay 8), power and control electronics |
F17 | Electronic stabilisation control (ESC), engine control unit (relay 5) |
F18 | Terminal 30 (reference voltage), battery monitoring |
F19 | Windscreen wipers |
F20 | Anti-theft alarm system |
F22 | Terminal 50, diagnostics, engine control unit |
F23 | Starter |
F24 | Air auxiliary heater heating rod 1, brake servo |
F31 | Vacuum pump, coolant pump, high-pressure pump, injectors |
F33 | Brake pressure accumulator, recuperation, gearbox oil pump |
F34 | Brake servo |
F35 | Air conditioner functional relay |
F37 | Auxiliary heating |
