Applies to: vehicles with navigation system and analogue instrument cluster

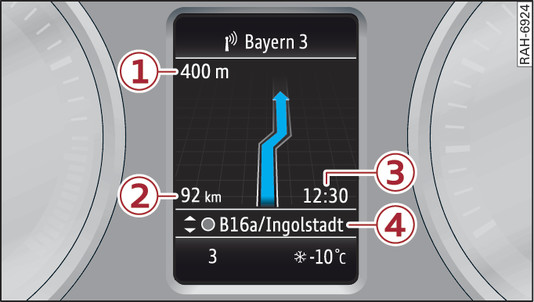

- Fig. 204 Example: Lane change in instrument cluster

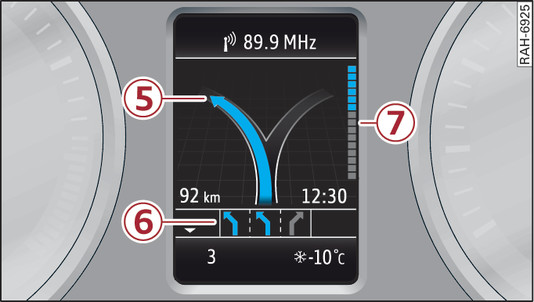

- Fig. 205 Example: Turn-off in instrument cluster
Important: A destination must have been entered link►, the route guidance function must have been started, and the navigation tab must be displayed.
The following information is displayed on the driver information system, depending on the equipment installed in your vehicle:
| -1- | Distance to next manoeuvre |
| -2- | Distance to destination/stopover |
| -3- | Estimated time of arrival |
| -4- | Name of motorway, major road or street you are driving on. If the symbol  is displayed in front of the street name, you are being directed to turn into the street. |
| -5- | Arrow indicating direction of upcoming turn-off |
| -6- | Lane recommendation |
| -7- | If an arrow is displayed, a bar graph will also appear. The fewer bars are displayed, the shorter the distance to the turn-off point. |
The following functions are available when route guidance is active:
- To have the last navigation cue repeated: Press the
button. - To adjust the volume of the navigation cues: Scroll the right thumbwheel up/down while a navigation cue is being played.
WARNING
The route calculated by the navigation system is a recommendation of how best to reach a destination. Pay attention to traffic lights, no-stopping signs, lane change restrictions, one-way streets, etc.
Note
- Also refer to link►.
- An exclamation mark “!” in front of the street name indicates that the navigation data of the MMI system do not contain all the information on this street or street section. Pay attention to traffic rules such as one-way streets or pedestrian zones.
