Applies to: vehicles with parking system plus/park assist
The parking system plus provides acoustic and visual assistance when parking.

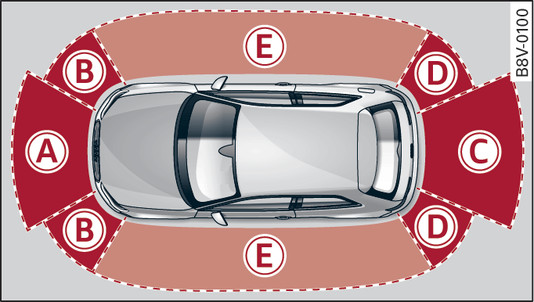

- Fig. 172 Diagram
Sensors are located in the front and rear bumpers. When the sensors detect an obstacle, you are alerted by acoustic signals (beeps) and a graphic display.
Please ensure that the sensors are kept free of stickers, deposits and any other substances which could impair the function of the system. Notes on cleaning link►.
Approximate range for each display zone:
-A- | 1.20 m |
-B- | 0.90 m |
-C- | 1.60 m |
-D- | 0.90 m |
-E-* | 0.90 m1) |
The acoustic signals sound with increasing frequency as you approach the obstacle. A warning tone will sound continuously when the vehicle is less than approx. 0.30 m away from the obstacle (or less than approx. 0.20 m away in zone -E-*). Stop moving immediately ►, ►!
The volume of the warning beeps will be reduced after a few seconds until it is muted if the vehicle remains at a constant distance from a detected obstacle (but not if the obstacle is closer than 0.30 m). If the tone is muted and the obstacle comes closer than before, the tone will sound again. If the tone is muted and the obstacle is further away than before, no tone will sound. Please watch the area surrounding the vehicle when driving off.
Note
Zone -E-* is detected and analysed as the vehicle is moving past. When you switch the ignition off and on again or open the door, or after the vehicle has been stationary for a while, the ambient surroundings may have changed. Zone -E-* is displayed in black on the infotainment display for this reason.
