Applies to: vehicles with Audi active lane assist
Fig. 162 Turn signal lever: Button for active lane assist
Fig. 162 Turn signal lever: Button for active lane assist

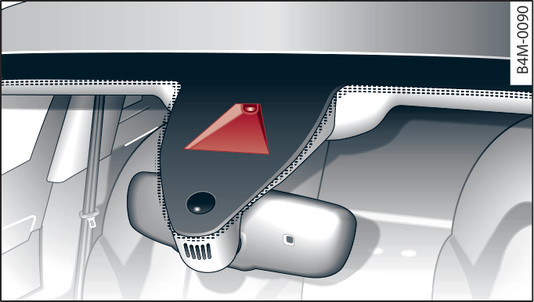

Fig. 163 Windscreen: Camera window for active lane assist
Fig. 163 Windscreen: Camera window for active lane assist
Press the button Fig. 162 to switch the system on/off. The indicator lamp in the instrument cluster will light up or go out.
Analogue instrument cluster
Audi virtual cockpit*
Meaning on corresponding side
Green lines
Green line(s)
(left/right)
The active lane assist is switched on and ready to warn.
-
Red line
(left/right)
The active lane assist warns you before you cross the lane demarcation. In addition, the steering wheel vibrates slightly.
Yellow lines
Grey line(s)
(left/right)
The active lane assist is switched on but not ready to warn.
The system may be switched on but not ready to warn due to the following reasons:
  • There are no lane markings.
  • The system cannot detect the relevant lane markings (e.g. temporary markings for road works or markings obscured by snow, dirt, rain or adverse light).
  • The vehicle s speed is below 65 km/h, the speed at which the lane assist system is activated (the threshold may vary in different export markets).
  • The traffic lane is too narrow or too wide.
  • The bend is too tight.
  • You have taken your hands off the steering wheel.
Note
  • Make sure that the camera window Fig. 163 is not covered with stickers or similar objects. Notes on cleaning link.
  • On vehicles for some export markets: once the system is activated, it is "ready" each time the ignition is switched on.
