Audi A3 Setting off Seats and storage Luggage compartment
Applies to: vehicles with stretch net/storage net
The stretch net can be used to secure and hold light items in the luggage compartment.

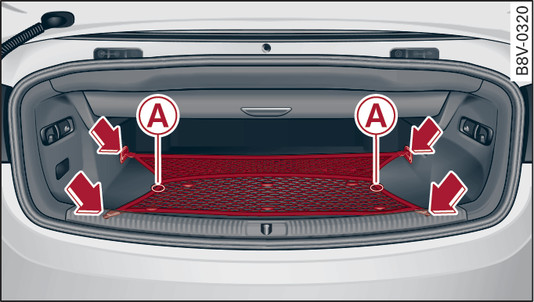

Fig. 74 Luggage compartment: Stretch net attached (example)
Fig. 74 Luggage compartment: Stretch net attached (example)

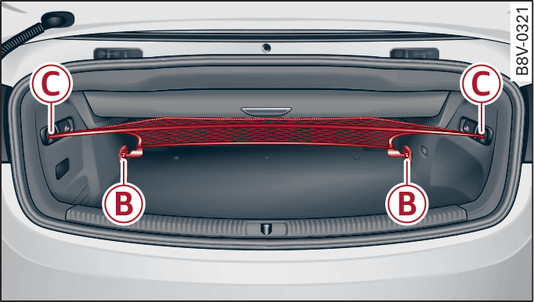

Fig. 75 Luggage compartment: Storage net attached (example)
Fig. 75 Luggage compartment: Storage net attached (example)
Stretch net
To secure the stretch net, insert first the front hooks and then the rear hooks of the stretch net into the fastening rings -arrows- Fig. 74.
Storage net
To secure the storage net, insert the two hooks into the fastening rings -B- Fig. 75 and attach the loops -A- to the retaining hooks* -C-.
You can also use the retaining hooks* -C- to secure light items of luggage, such as shopping bags, etc.
WARNING
The stretch net should only be used to hold objects weighing up to 5 kg. Heavier objects cannot be safely secured – risk of injury!
