►Audi A3 ►Setting off ►Seats and storage ◀Luggage compartment
Applies to: vehicles with luggage compartment cover
The luggage compartment cover blocks the view into the luggage compartment.

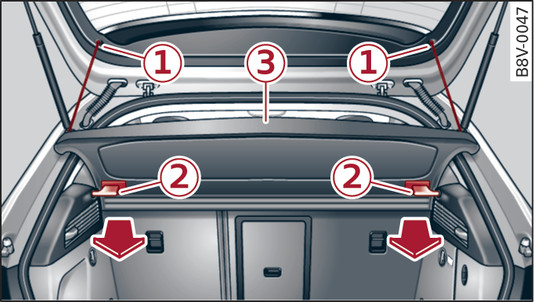

Fig. 71 Open boot lid with luggage compartment cover
Fig. 71 Open boot lid with luggage compartment cover
Removing
Detach the cords -1- and pull the cover -3- out of the retainers -2- in the direction of the arrows.
Installing
Push the cover -3- horizontally into the retainers -2- on the side trim until it engages.
Attach the cords to the boot lid -1- ►.
WARNING
  • The luggage compartment cover must always be fixed properly – risk of accident!
  • The luggage compartment cover should not be used as a storage shelf. Items placed on this cover could cause injury in an accident or if the brakes are applied suddenly.
◀back
