►Audi A3 ►Setting off ►Soft top (folding... ◀Operating the soft to...
Applies to: vehicles with soft top

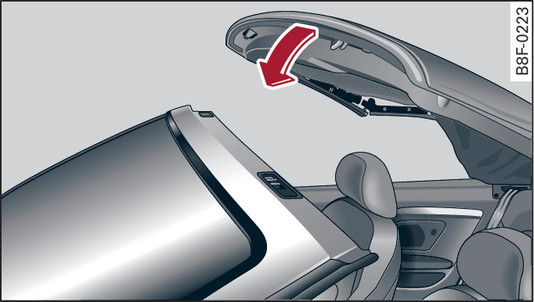

Fig. 45 Windscreen: Closing the soft top
Fig. 45 Windscreen: Closing the soft top

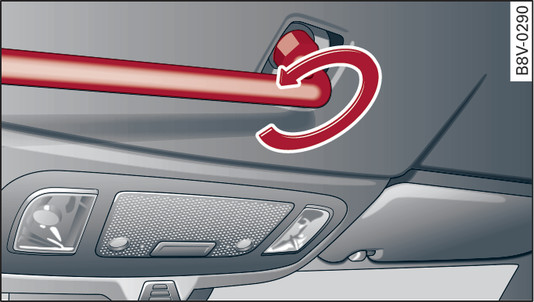

Fig. 46 Inside the front of the soft top: Locking the soft top
Fig. 46 Inside the front of the soft top: Locking the soft top
Press down the front part of the soft top against the windscreen frame Fig. 45► ►.
Insert the box spanner in the opening and turn it anti-clockwise as far as the stop Fig. 46►.
Remove the box spanner and insert the cap to seal the opening.
Put the box spanner back in the tool kit.
Note
Make sure that the locking mechanism is fully closed.
