Applies to: vehicles with soft top

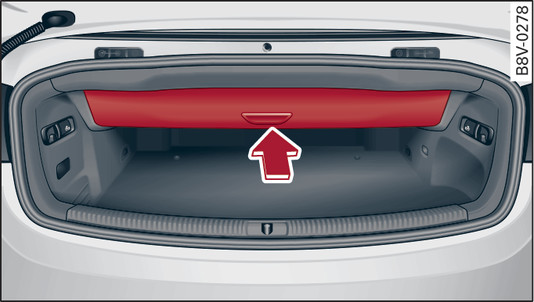

- Fig. 34 Luggage compartment: Variable storage box in lowered position

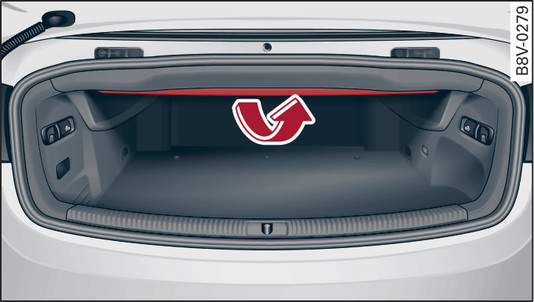

- Fig. 35 Luggage compartment: Variable storage box in raised position
The variable storage box must be in the lowered position before the soft top can be opened. To prevent damage, ensure that there are no fragile objects in the path of the variable soft top storage box before it starts moving.
Raising the variable soft top storage box
To raise the variable soft top storage box, press the handle on the trim panel in the direction of the arrow Fig. 34►.
Lowering the variable soft top storage box
To lower the variable soft top storage box, pull the handle on the trim panel in the direction of the arrow Fig. 35►.
The variable soft top storage box can be raised when the soft top is closed. This gives more space in the luggage compartment.
When it is opened, the soft top folds away into the storage box for protection. The storage box cannot be raised while the soft top is open. This is why your vehicle has a smaller luggage capacity when the soft top is open than when it is closed.
