Applies to: vehicles with bulbs
-

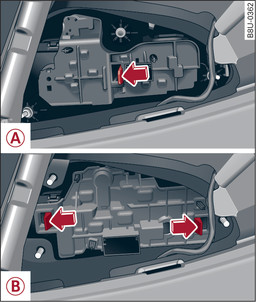

- Fig. 361 Rear light: -A- 3-door/Sportback, -B- Saloon/Cabriolet: Release points
-

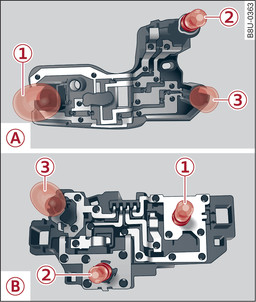

- Fig. 362 Rear light: -A- 3-door/Sportback, -B- Saloon/Cabriolet: Positions of bulbs
(Applies to: 3-door/Sportback: ) Press the retaining tab in the direction of the arrow -A- Fig. 361►
.
(Applies to: Saloon/Cabriolet: ) Press the retaining tabs in the direction of the arrows -B- Fig. 361►
.
Detach the bulb carrier -A- or -B- Fig. 362►
.
Renew the defective bulb (pull to remove from plug-in holder or turn to remove from bayonet holder).
Attach the bulb carrier.
Re-install all the parts in the reverse sequence.
Check whether the new bulb is working.
|
Position
Fig. 362►
|
Bulb function
|
|
-1- |
Rear fog light
|
|
-2- |
Reversing light
|
|
-3-
|
Tail light/div>
|
