Applies to: vehicles with bulbs
-

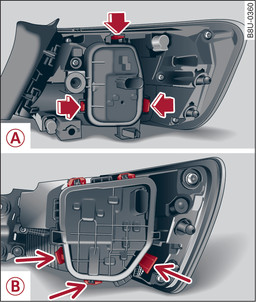

- Fig. 357 Rear light: -A- 3-door/Sportback, -B- Saloon/Cabriolet: Release points
-

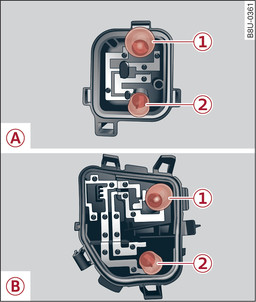

- Fig. 358 Bulb carrier: -A- 3-door/Sportback, -B- Saloon/Cabriolet: Positions of bulbs
(Applies to: 3-door/Sportback: ) Press the retaining tabs in the direction of the arrows -A- Fig. 357►
.
(Applies to: Saloon/Cabriolet: ) Unfasten the clips securing the bulb carrier -B- Fig. 357►
. Start with the three clips at the bottom -arrows-.
Detach the bulb carrier -A- or -B- Fig. 358►
.
Renew the defective bulb (pull to remove from plug-in holder).
Attach the bulb carrier.
Re-install all the parts in the reverse sequence.
Check whether the new bulb is working.
Position of bulbs
|
Position
Fig. 358►
|
Bulb function
|
|
-1-
|
Brake lights / tail lights
|
|
-2- |
Turn signals/div>
|
