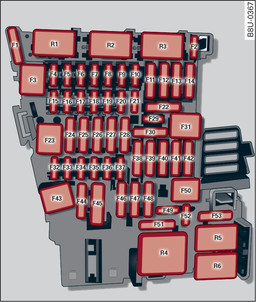

- Fig. 345 Interior: Fuse layout
|
No. |
Electrical equipment
|
|
F1
|
AdBlue engine components
|
|
F2
|
Seat adjuster
|
|
F3
|
Hydraulic pump for soft top
|
|
F4
|
Infotainment control console, infotainment components
|
|
F5 |
Gateway
|
|
F6
|
Selector lever (for automatic gearbox)
|
|
F7
|
Air conditioner/heater console, auxiliary heating, relay coil for rear window heating
|
|
F8
|
Switch for electro-mechanical parking brake, light switch, rain/light sensor, interior lighting, anti-theft alarm system, diagnostic connector, communciations box
|
|
F9
|
Steering column switch module
|
|
F10
|
Infotainment display
|
|
F11
|
Belt tensioners (driver s side)
|
|
F12
|
Infotainment components
|
|
F13
|
Control unit for suspension control, diagnostic connector
|
|
F14
|
Blower (heating system/air conditioner)
|
|
F15
|
Electric steering column lock
|
|
F16
|
Infotainment components
|
|
F17
|
Instrument cluster
|
|
F18
|
Reversing camera
|
|
F19
|
Control unit for convenience access
|
|
F20
|
Engine components
|
|
F21
|
Steering column switch module, steering wheel heating
|
|
F23
|
Control unit for vehicle electrical system (right side)
|
|
F24
|
Panorama sun roof/control unit for soft top, soft top lock
|
|
F25
|
Electric window, front/rear (driver s side)
|
|
F26
|
Seat heating
|
|
F27
|
Sound amplifier
|
|
F28
|
Control unit for soft top
|
|
F29
|
Interior lights
|
|
F31 |
Control unit for vehicle electrical system (left side)
|
|
F32 |
Control unit for reversing camera, radar sensor
|
|
F33 |
Airbag
|
|
F34
|
LEDs for buttons/switches, interior sound, reversing light switch, temperature sensor, coil for neck heating relay and electrical socket relay
|
|
F35
|
Function lighting, headlight range control, air quality sensor, automatic anti-dazzle mirrors, diagnostic connector
|
|
F36
|
Headlights, right-side
|
|
F37
|
Headlights, left-side
|
|
F38
|
High-voltage battery
|
|
F39
|
Electric window, front/rear (front passenger s side)
|
|
F40
|
Cigarette lighter, electrical sockets
|
|
F41
|
Belt tensioners (front passenger s side)
|
|
F42
|
Central locking system, windscreen washer
|
|
F43
|
Interior lights
|
|
F44
|
Four-wheel drive
|
|
F47
|
Rear window wiper
|
|
F48
|
Sound actuator/exhaust sound system
|
|
F49
|
Starter, clutch sensor, high-voltage battery, power electronics
|
|
F53
|
Rear window heating/div>
|
The seats with electric adjustment* are protected by circuit breakers. These reset automatically after a few seconds when the overload has been corrected.
