Applies to: vehicles with Audi phone box
You can use the Audi phone box to charge your mobile phone s battery. You can use the vehicle s external aerial to make calls, which reduces radiation in the vehicle and also ensures better reception quality.*
-

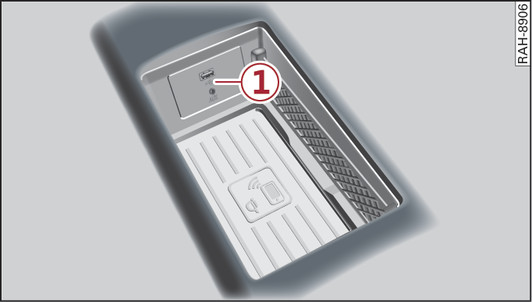

- Fig. 213 Audi phone box with connections
The Audi phone box is located in the centre console beneath the armrest -33- Fig. ►
.
Important: A mobile phone must be connected via Bluetooth link►
.
The following options are available:
- To establish a connection with the external car aerial1): Place your mobile phone onto the middle of the telephone symbol in the Audi phone box Fig. 213► with the phone s display facing upwards. When doing so, make sure that there are no objects between the Audi phone box and the mobile phone.
- To charge a mobile phone wirelessly: Place your Qi compatible2) mobile phone onto the middle of the symbol in the Audi phone box Fig. 213► with the phone s display facing upwards. The mobile phone will be charged.
- To charge a mobile phone via a USB adapter: Connect your mobile phone to the USB charging socket -1- Fig. 213► using a USB adapter cable.
You can charge your mobile phone using special USB adapters Fig. ►
.
WARNING
- Loose objects can be flung around in the passenger compartment in the event of sudden driving or braking manoeuvres. This could result in serious injuries and also cause you to lose control of the vehicle. Always keep the centre armrest closed when driving.
- The mobile phone may become hot while charging wirelessly. Consider the temperature of your mobile phone when removing it. Take the mobile phone out of the Audi phone box carefully.
Note
- The Audi phone box is not available in all countries. Your Audi dealer will be able to provide you with more detailed information.
- If the mobile phone is placed in the Audi phone box in a bag or a protective case, this may interfere with the connection to the external aerial*.
- Any metal objects in the Audi phone box will prevent the mobile phone from charging wirelessly or being used to make calls via the external aerial*.
- The charging time and the temperature vary depending on the mobile phone being used.
- The ignition must be switched on to charge a mobile phone in the Audi phone box.
- To avoid malfunctions, ensure that the mobile phone is correctly placed inside the Audi phone box.
- The maximum charging capacity is 5 W.
- An enhanced transmission quality cannot be guaranteed if more than one mobile phone is placed inside.*
- Audi recommends the use of Audi Genuine Accessories. Audi has tested these products for suitability, reliability and safety.
- USB adapters are available from Audi dealers or specialist retailers.
- When you charge your mobile phone wirelessly, the charging procedure may be interrupted if you place your remote control key in the Audi phone box together with the mobile phone.
