Applies to: vehicles with camera-based traffic sign recognition
-

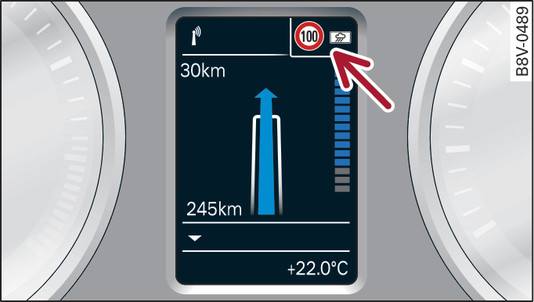

- Fig. 152 Instrument cluster: Secondary display
Calling up the traffic sign recognition
Call up the "Car" tab (on-board computer) using the
button.
button.
(Applies to vehicles with analogue instrument cluster: ) Press the
button and select
Traffic signs from the menu.
button and select
Traffic signs from the menu.
(Applies to vehicles with Audi virtual cockpit: ) Select the display for
Traffic signs.
Displaying signs for trailers
You can also display speed limits which apply specifically to vehicles towing a trailer1).
Select the following on the infotainment system:
MENU button >
Car > left control button
Driver assist >
Traffic signs >
Automatic trailer recognition.
Setting the maximum speed for a trailer
You can set the maximum speed permitted for your type of trailer1). If you do not enter a value, the system will show the maximum national speed limit for vehicles towing a trailer.
Select the following on the infotainment system:
MENU button
Car > left control button
Driver assist >
Traffic signs >
Trailer: highest speed.
Setting speed warning
You can set a warning threshold up to 15 km/h. The traffic sign for the currently detected speed limit will flash on the display if the selected warning threshold is exceeded.
Select the following on the infotainment system:
MENU button >
Car > left control button >
Driver assist >
Speed warning >
Traffic sign based.
Secondary display
If the instrument cluster is currently showing a function other than traffic sign recognition, the speed limit will be displayed in the top right-hand corner Fig. 152►
. If the system is able to detect a temporary speed restriction in a given situation, it will update the display accordingly.
Temporary speed restrictions are displayed in the following situations:
- A temporary speed restriction for wet weather is detected while the windscreen wipers are operating.
- A speed restriction for fog is detected while the vehicle s rear fog light or all-weather lights are switched on.
- A speed restriction applying at certain times of day has been detected and corresponds to the time displayed in the instrument cluster.
- The vehicle is towing a trailer and the Automatic trailer recognition option is activated on the infotainment system. In this case, restrictions applying to trailers are displayed1).
Note
- Your speed warning settings and the maximum trailer speed will be automatically stored and assigned to the remote control key in use. If you change to a different type of trailer, you may need to change the maximum trailer speed setting.
- Please note that the navigation system (SD card)* is immediately no longer available if the SD card is removed from the SD card reader.
