►Audi A3 - 2016►Setting off ►e-tron ◀Charging the vehicle with the Au...
Applies to: vehicles with plug-in hybrid drive

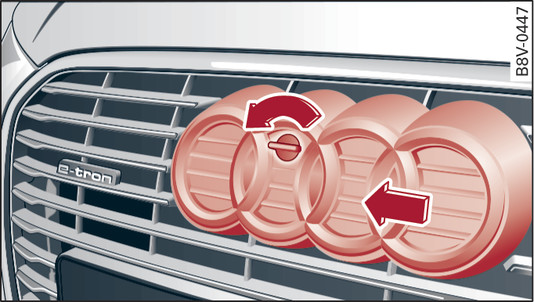

Fig. 143 Radiator grille: Opening the cover on the charging unit
Fig. 143 Radiator grille: Opening the cover on the charging unit

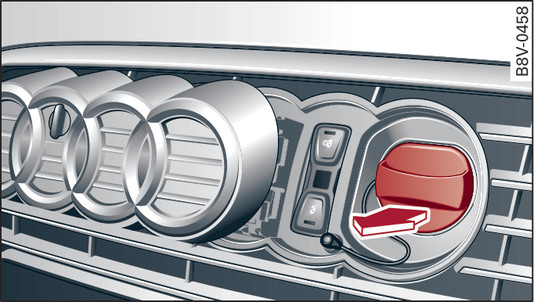

Fig. 144 Radiator grille: Charging connection cap
Fig. 144 Radiator grille: Charging connection cap
If necessary, unlock the vehicle link► .
Ensure that the selector lever is in position P and the vehicle status is not ready link► .
To open the cover on the charging unit, turn the catch to the vertical position Fig. 143► .
If necessary, push the cover carefully to the side.
Pull the cap off the charging connection Fig. 144► .
Connect the mains plug -B- or -C- to the power outlet Fig. ► .
Plug the vehicle charging connector -E- Fig. ► into the vehicle charging connection Fig. 144► . If no charging timer is set, the charging process will start automatically.
Note
Use a small brush and a solvent-free de-icer spray to remove ice and snow from the cover.
