Applies to: vehicles with plug-in hybrid drive

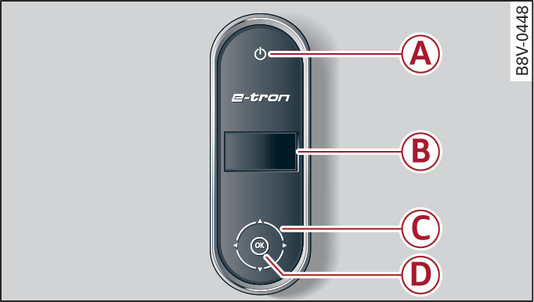

Fig. 141 Charging system: Operating unit
Fig. 141 Charging system: Operating unit

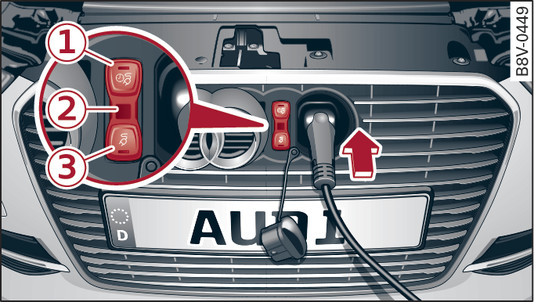

Fig. 142 Radiator grille: Vehicle charging connection and buttons
Fig. 142 Radiator grille: Vehicle charging connection and buttons
The charging unit is located behind the Audi rings at the front of the vehicle.
-A- button/LED
-B- Display
-C- Arrow buttons
-D- OK button
-1- Charging timer button
-2- Status LED
-3- Immediate charge button
For more information about the various LED status indicators on the charging system and vehicle, please refer to link► .
WARNING
If a red LED -A- lights up, there is a malfunction in the operating unit. Disconnect the operating unit from the mains. Refer to link► .
Note
  • When the power supply is connected or restored, the operating unit performs a self-test routine.
  • You can activate a PIN for the operating unit link► .
  • The vehicle cannot be started while the vehicle charging connector is connected.
