Applies to: vehicles with plug-in hybrid drive
The power meter displays the status and availability of the plug-in hybrid system.
-

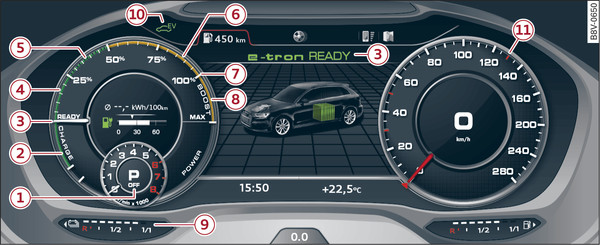

- Fig. 121 Applies to: vehicles with Audi virtual cockpitOverview of power meter
-

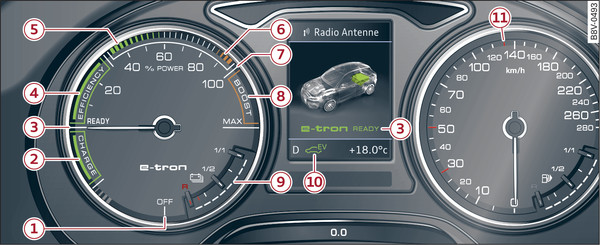

- Fig. 122 Applies to: vehicles with analogue instrument clusterOverview of power meter
Call up the first tab (on-board computer) using the
button on the multi-function steering wheel.
button on the multi-function steering wheel.
(Applies to vehicles with Audi virtual cockpit: ) Select the following on the multi-function steering wheel: right control button >
Left gauge >
Rev counter/
Power meter >
Combined view.
(Applies to vehicles with Audi virtual cockpit: ) Further information can be found on link►
.
(Applies to vehicles with analogue instrument cluster: ) Call up the
Rev counter display by scrolling the left thumbwheel on the multi-function steering wheel.
The charge level of the high-voltage battery is displayed in the instrument cluster when you open the driver s door with the vehicle s ignition switched off; the remaining charging time is displayed additionally when charging is in progress.
The power meter responds to the driver s accelerator pedal input and indicates the current fuel/electric power demand (%) regardless of whether it is the electric motor or the engine that is presently active.
The green areas on the dial are used to show that the vehicle is being driven economically and that energy is being recuperated link►
. Less economical driving is indicated when the needle points to the orange area.
| -1- | Vehicle not ready to be driven (OFF) |
| -2- | Recuperation (CHARGE) |
| -3- | Vehicle ready to be driven (READY) / coasting |
| -4- | Efficient driving with the electric motor or the combustion engine (EFFICIENCY) |
| -5- | Economical driving with the electric motor/combustion engine running at partial load |
| -6- | Driving at full load |
| -7- | Power output 100% |
| -8- | Boosting - electric motor supporting the combustion engine (BOOST) |
| -9- | Charge level of the high-voltage battery |
| -10- | EV mode: active
, standby
 or currently unavailable
 |
| -11- | Speed limit for electric driving in EV mode (130 km/h) |
