Applies to: vehicles with automatic air conditioner
-

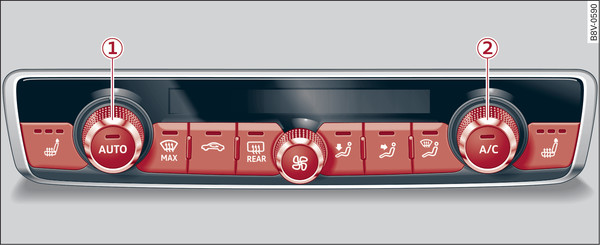

- Fig. 91 Automatic air conditioner: Controls (example)
The rotary controls are used to adjust the temperature and blower speed. The functions can be switched on and off by pressing the buttons. The LED in the corresponding button lights up when the function is switched on.
Automatic air conditioner
We recommend pressing the AUTO button and setting the temperature to 22 °C (72 °F). The air conditioner is fully automatic, and will maintain the desired temperature at a constant level. When the heater is on, the blower normally only switches to a higher speed once the coolant has warmed up sufficiently (this does not apply to the defrost setting).
The air cooling system only works when the blower is switched on. The air cooling mode is switched on/off when the A/C button is pressed. When the air cooling is switched off, the air is not cooled and therefore not dehumidified. The windows may mist up as a result. The air cooling is switched off automatically at low outside temperatures.
The automatic mode is switched on when the AUTO button is pressed. The AUTO mode is switched off immediately when you operate any of the manual air controls. The automatic mode maintains a constant temperature inside the vehicle. Air temperature, output and distribution are regulated automatically.
The “eco” mode* is activated if you press the AUTO button briefly while automatic mode is active. Fuel is saved in “eco” mode* because the settings respond more passively. The “eco” mode* is on when
eco appears in the console display. The “eco” mode* is deactivated when you press the AUTO button again.
You can set separate temperatures for the driver s and front passenger s sides using controls -1- and -2-. The temperature can be adjusted between +16 °C (+60 °F) and +28 °C (+84 °F). Outside this range,
LO or
HI will appear on the air conditioner display. In the two extreme settings the air conditioner operates continuously with maximum cooling or heating output, and the temperature is not regulated automatically.
Synchronisation: By pressing the AUTO button for 2 seconds, the temperature of the passenger s side can be set to the temperature of the driver s side. The settings remain synchronised until the temperature is changed on the passenger s side.
You can adjust the blower speed manually using the control
. You should leave the blower on at a low setting to prevent the windows from misting up and to ensure that the vehicle interior is constantly ventilated. Press the AUTO button for automatic control of the blower speed.
. You should leave the blower on at a low setting to prevent the windows from misting up and to ensure that the vehicle interior is constantly ventilated. Press the AUTO button for automatic control of the blower speed.
Buttons
,
and
are used to adjust the air distribution. Press the AUTO button for automatic air distribution.
,
and
are used to adjust the air distribution. Press the AUTO button for automatic air distribution.
The round air outlets in the dashboard can be adjusted link►
.
To prevent the front side windows from misting up in wet weather, it s a good idea to open the side air outlets and point them to the side.
Foot-level air outlets underneath the front seats and adjustable air outlets at the end of the centre console are provided to heat the rear cabin.
The windscreen and side windows are defrosted or demisted as quickly as possible. The air output is increased to maximum and most of the air comes out of the outlets below the windscreen. The air recirculation mode is deactivated. The temperature is regulated automatically. At setting
the A/C cooling mode is automatically activated depending on the ambient temperature.
the A/C cooling mode is automatically activated depending on the ambient temperature.
The defroster is switched off when the AUTO button is pressed.
The air recirculation mode can be switched on manually or automatically*.
- To switch the manual air recirculation mode on/off, press the
button. The LED is lit when the function is on. - The automatic* air recirculation function must be activated on the infotainment system. Select the following on the infotainment system: MENU button > Car > left control button > A/C > Auto recirculation. The air quality sensor, which is designed for the detection of diesel and petrol exhaust fumes, automatically switches the air recirculation mode on or off depending on the level of pollution in the outside air.
In air recirculation mode, the air from the interior of the vehicle is filtered and recirculated. This setting prevents fumes etc. from entering the interior. We recommend switching on the air recirculation mode when driving through a tunnel or in traffic queues ►.
The air recirculation mode is switched off when the
or AUTO or
button is pressed.
or AUTO or
button is pressed.
If the engine is cold, the air conditioner will automatically switch to air recirculation mode when the vehicle is reversing.
The rear window heating is switched on when the
button is pressed. If the rear window heating is activated with the ignition switched on, the battery management determines whether or not the battery charge level is sufficient for the rear window heating to be switched on. Otherwise the rear window heating operates when the engine is running, and switches off automatically after about 10 - 20 minutes, depending on the outside temperature.
button is pressed. If the rear window heating is activated with the ignition switched on, the battery management determines whether or not the battery charge level is sufficient for the rear window heating to be switched on. Otherwise the rear window heating operates when the engine is running, and switches off automatically after about 10 - 20 minutes, depending on the outside temperature.
To switch on the rear window heating permanently, press and hold the
button for at least 2 seconds. This setting will be stored for approximately 15 minutes after the ignition is switched off.
button for at least 2 seconds. This setting will be stored for approximately 15 minutes after the ignition is switched off.
When you press the
button, the seat heating is switched on at level 3 (the highest level). The LEDs indicate the temperature level. To reduce the temperature, press the button again. To switch off the seat heating, press the button repeatedly until all the LEDs have gone out.
button, the seat heating is switched on at level 3 (the highest level). The LEDs indicate the temperature level. To reduce the temperature, press the button again. To switch off the seat heating, press the button repeatedly until all the LEDs have gone out.
The seat heating automatically switches from level 3 to level 2 after about 10 minutes.
- For reasons of safety you should not leave the air recirculation switched on for too long. This mode prevents fresh air from entering the vehicle, so the windows can mist over if the air cooling* is switched off. Bad visibility can cause an accident.
- People with limited capacity to feel pain or sense temperature could burn themselves when using the seat heating. These people must not use the seat heating - risk of injury!
CAUTION
To avoid damaging the heating elements of the seat heating, please do not kneel on the seat or apply sharp pressure at a single point.
Note
- The setting for the driver s seat heating is assigned to the key in use.
- If the front passenger s seat heating was on when you last switched off the ignition, it will be switched on automatically only if the ignition is switched on again within 10 minutes.
