Applies to: vehicles with electric seat adjustment
-

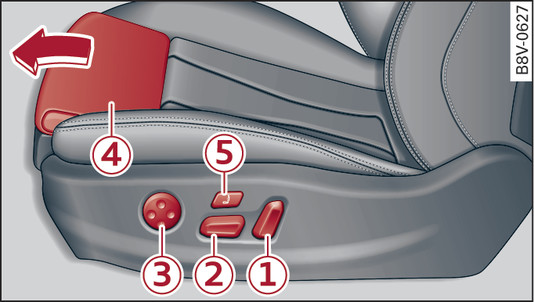

- Fig. 65 Front seat: Electric adjustment
-1- - Backrest angle: Press the button forwards/backwards.
-2- - Seat height: Press the button up/down. To adjust the front of the seat cushion, press the front of the button up/down. To adjust the rear of the seat cushion, press the rear of the button up/down.
-2- - Seat forwards/backwards: Press the button forwards/backwards.
-3- - Lumbar support*:
Press the appropriate side of the button.
-4- - Thigh support*:
Lift the handle and move the thigh support in or out.
-5- - Massage function* on/off.
WARNING
- Never adjust the front seats when the vehicle is moving - this could lead to an accident.
- The electric seat adjustment also works when the ignition is off and when the key is not in the ignition. To avoid accidental injuries, never leave children unattended in the vehicle.
- Be careful when adjusting the seat height. Careless or uncontrolled use of the height adjustment can cause injuries.
- Do not drive with the backrests of the front seats reclined too far as otherwise the seat belt and airbag could fail to restrain the wearer properly in an accident, possibly leading to injury.
Note
The massage function* switches off automatically after 10 minutes.
