Applies to: vehicles with Audi virtual cockpit
You can use the multi-function steering wheel to control the driver information system and MMI functions, adjust the volume and switch the speech dialogue system on/off.
-

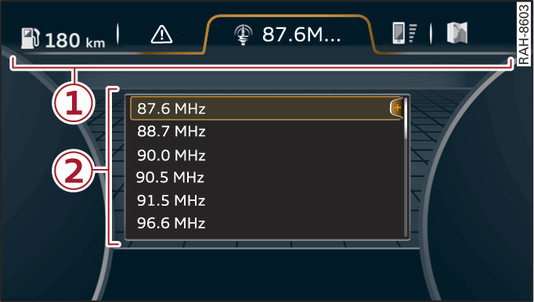

- Fig. 7 Example: Driver information system display (Audi virtual cockpit)
-
- Fig. 8 Left side of multi-function steering wheel plus
Important: The ignition must be switched on.
The driver information system shows information -2- in several display tabs -1-
Fig. 7►
.
The equipment installed on your vehicle determines which of the following tabs are available:
-3-
button
button- To switch between tabs: Press the button
repeatedly until the desired tab is displayed (e.g. Radio).
-4-
VIEW button
To change the view: see link►
.
-5-
button
button
To return to the previous function level.
-6- Control buttons
and
and
To call up/close the selection menu or options menu link►
.
- To select a function in a menu/list: Scroll the left thumbwheel to the desired function (e.g. setting a frequency).
- To confirm your selection: Press the left thumbwheel -7- Fig. 8► .
- To zoom in/out of the map: When a map is shown on the display, scroll the left thumbwheel to make the map scale larger or smaller.
