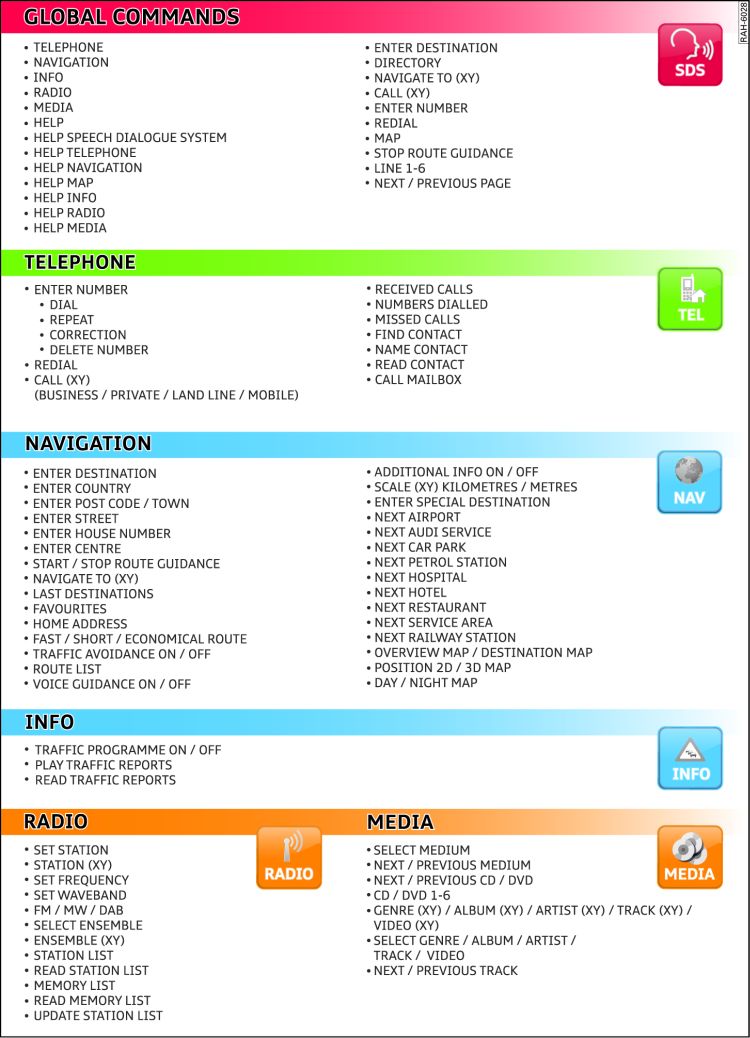

- Fig. 1 Overview of commands for the speech dialogue system
- Fig. 2 Command display on MMI display
- Fig. 3 Selecting an entry from a list
- Fig. 4 Talk button and right thumbwheel
Commands
When you press the talk button
the command display with a list of possible commands for the active menu will appear Fig. 2. The command display can be switched on or off in the Setup MMI menu Link.
the command display with a list of possible commands for the active menu will appear Fig. 2. The command display can be switched on or off in the Setup MMI menu Link.The speech dialogue system uses two types of command:
- Global commands (irrespective of the current mode), e.g. NAVIGATION
- Commands of the mode that is currently active, e.g. FAVOURITES in Navigation mode
The overview of commands Fig. 1 gives you a general outline of the most important commands of the speech dialogue system.
Help commands
If the speech dialogue system is activated Link, you can say a help command. Important commands are:
- HELP
- HELP SPEECH DIALOGUE SYSTEM
- HELP TELEPHONE
- HELP NAVIGATION
- HELP MAP
- HELP INFO
- HELP RADIO
- HELP MEDIA
Say the command BACK to return to the Help menu that was last activated.
Selecting an entry from a list
The entries in a list, e.g. Missed calls, help topics, road names etc., are shown with position numbers on the MMI display Fig. 3. You can select a line by saying the line number, e.g. LINE FOUR or by repeating the entry shown in the MMI display. You can also select an entry via the MMI by turning the rotary pushbutton to mark the entry and pressing the rotary pushbutton.
Give the commands NEXT/PREVIOUS PAGE to scroll up and down the list.
Voice guidance
To switch the voice guidance cues for navigation on or off, say the command VOICE GUIDANCE ON or OFF.
Adjusting the volume
To adjust the volume of the spoken cues with the multi-function steering wheel, scroll the right thumbwheel -2- Fig. 4 up or down while the system is playing a cue.
Guided dialogue assistance
If the speech dialogue system is switched on Link and you do not say a command, the speech dialogue system will say Please enter a command or say help. If you still give no command, the speech dialogue system will suggest important commands.
Example of guided dialogue assistance (main telephone function activated):
| Operation/
Command |
Cue from
speech dialogue system |
|---|---|
| Briefly press the
talk button |
Acoustic signal: Beep |
| No command given |
Please enter a command or say help |
| HELP |
Please choose one of the following topics: |
| All telephone commands | |
| Important telephone commands | |
| Commands for phoning | |
| Commands for call lists | |
| Commands for the directory |
Note
- Speech control is possible for all main functions (except Car and Tone) that are currently displayed on the MMI screen or are running in the background (e.g. radio).
- You can interrupt a spoken cue from the speech dialogue system any time by pressing the talk button on the multi-function steering wheel Fig. 4; you can now enter a new command.
- You can also adjust the volume by turning the ON/OFF button Link.
